Pressure Reducing Valve
Navigation

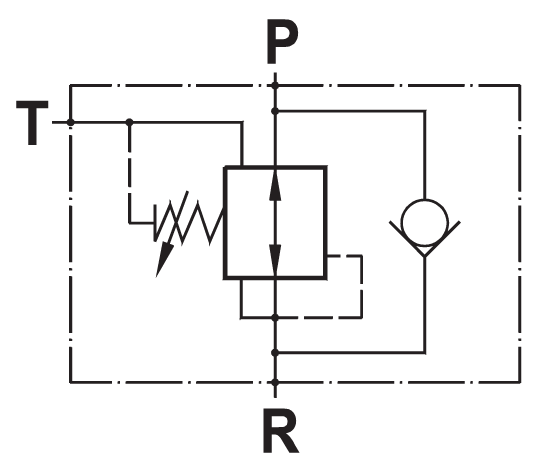

FPRP-2D
| Type | Rated Flow | Max Setting | Max Pressure | Download |
|---|---|---|---|---|
| FPRP-2D-25-CB-*-1/4-* | Rated Flow25 l/min | Max Setting120 bar | Max Pressure250 bar(std) - 350 bar (ver. S) | DownloadDownload |

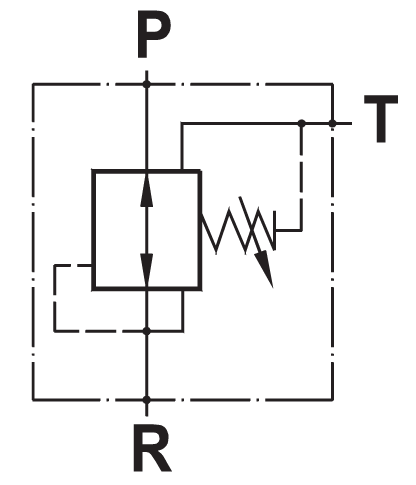

FPRP-D
| Type | Max Setting | Torque | Cavity | Max Pressure | Rated Flow | Download |
|---|---|---|---|---|---|---|
| FPRP-D-30-C(B)-*-3/8 | Max Setting180 bar | Torque60 Nm | Cavity33103 | Max Pressure350 bar (250 bar, std CB version) | Rated Flow30 l/min | DownloadDownload |

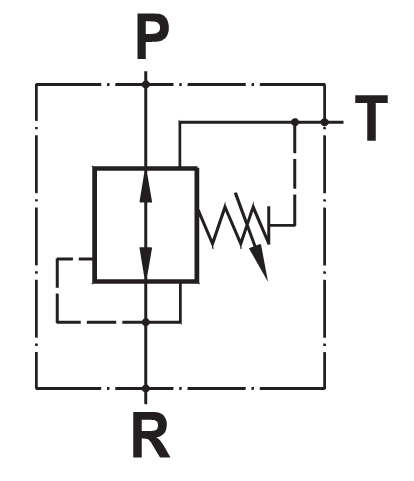

FPRPN-D
| Type | Max Setting | Torque | Cavity | Max Pressure | Rated Flow | Download |
|---|---|---|---|---|---|---|
| FPRPN-D-30-C(B)-*-3/8 | Max Setting180 bar | Torque60 Nm | Cavity33101 | Max Pressure350 bar (250 bar, std CB version) | Rated Flow30 l/min | DownloadDownload |

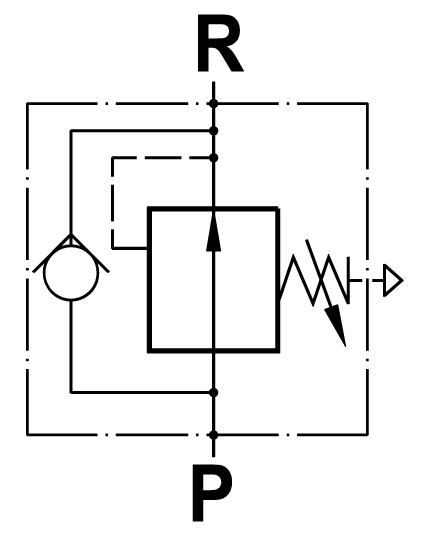

FPRPU-D
| Type | Max Setting | Max Pressure | Rated Flow | Download |
|---|---|---|---|---|
| FPRPU-D-30-CB-*-3/8 | Max Setting180 bar | Max Pressure210 bar(std) - 350 bar (ver.S) | Rated Flow30 l/min | DownloadDownload |
