| Type | Operating pressure | Section distance | BSP | Nr of section | UN-UNF | Metric | Max flow per section | circuit | Nominal Flow | max operating pressure P | max operating pressure AB | max operating pressure T | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

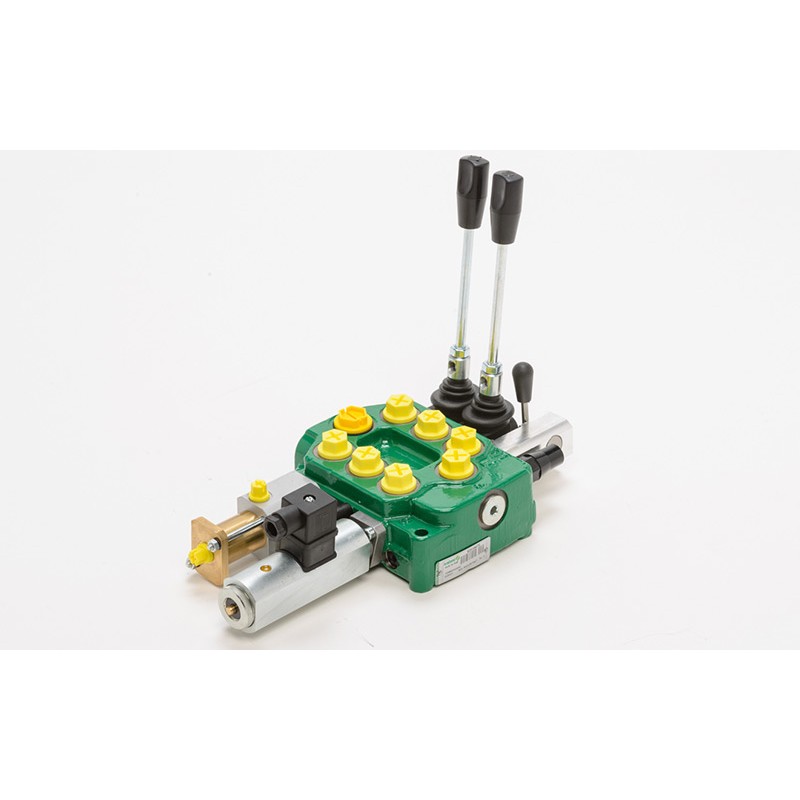

| VDM6 | Operating pressure350 - 5070 | Section distance32 - 1.26 | BSPG3/8 | Nr of section1 - 7 | UN-UNFSAE 8 | MetricM18x1.5 | Max flow per section60 - 16 | circuitP / S / T | Nominal Flow45 - 12 | max operating pressure P350 - 5070 | max operating pressure AB350 - 5100 | max operating pressure T25 - 360 | Download |
| Type | Operating pressure | Nr of section | Max flow per section | circuit | Nominal Flow | max operating pressure P | max operating pressure AB | max operating pressure T | Download |
|---|---|---|---|---|---|---|---|---|---|
| VDM6A | Operating pressure350 - 5070 | Nr of section1 - 7 | Max flow per section60 - 16 | circuitP | Nominal Flow45 - 12 | max operating pressure P350 - 5070 | max operating pressure AB350 - 5100 | max operating pressure T25 - 360 | Download |
| Type | Operating pressure | Nr of section | Max flow per section | circuit | Nominal Flow | max operating pressure P | max operating pressure AB | max operating pressure T | Download |
|---|---|---|---|---|---|---|---|---|---|

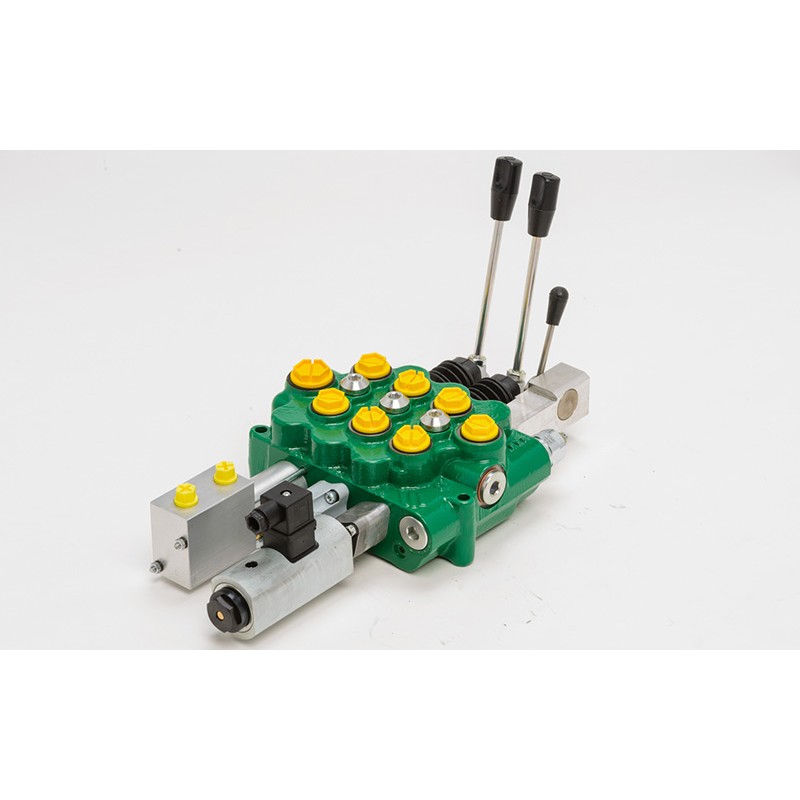

| VDM8 | Operating pressure350 - 5070 | Nr of section1 - 5 | Max flow per section90 - 24 | circuitP | Nominal Flow75 - 20 | max operating pressure P350 - 5070 | max operating pressure AB350 - 5100 | max operating pressure T25 - 360 | Download |
