| Type | Operating pressure | Nr of section | Max flow per section | circuit | Nominal Flow | max operating pressure P | max operating pressure AB | max operating pressure T | Download |
|---|---|---|---|---|---|---|---|---|---|

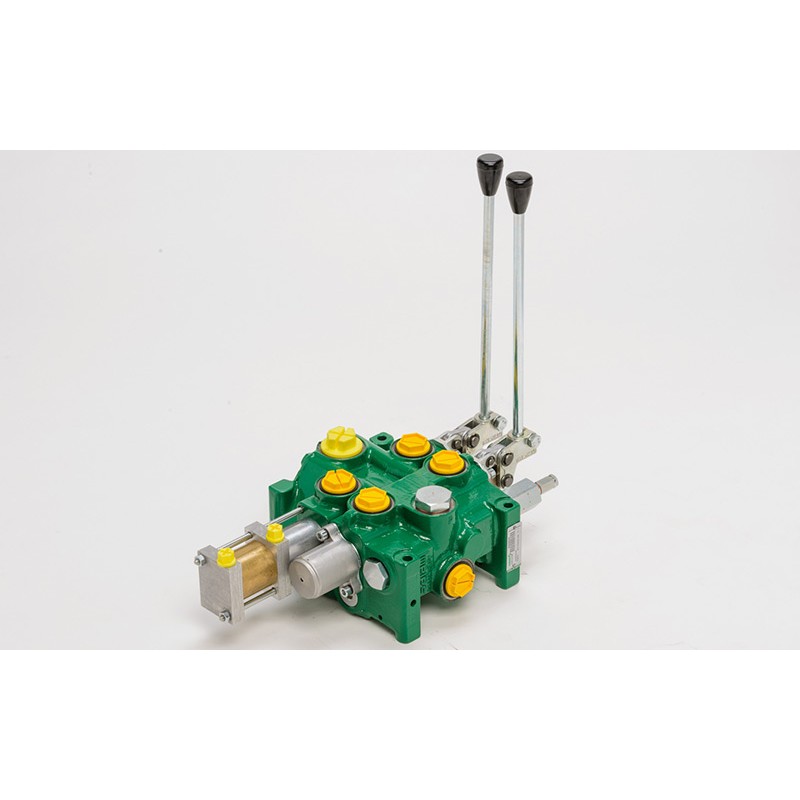

| VD10A - VD12A | Operating pressure280 - 4050 | Nr of section1 - 8 | Max flow per section140 - 37 | circuitP / S / T | Nominal Flow120 - 32 | max operating pressure P280 - 4050 | max operating pressure AB315 - 4600 | max operating pressure T25 - 360 | Download |
| Type | Operating pressure | Nr of section | Max flow per section | circuit | Nominal Flow | max operating pressure P | max operating pressure AB | max operating pressure T | Download |
|---|---|---|---|---|---|---|---|---|---|

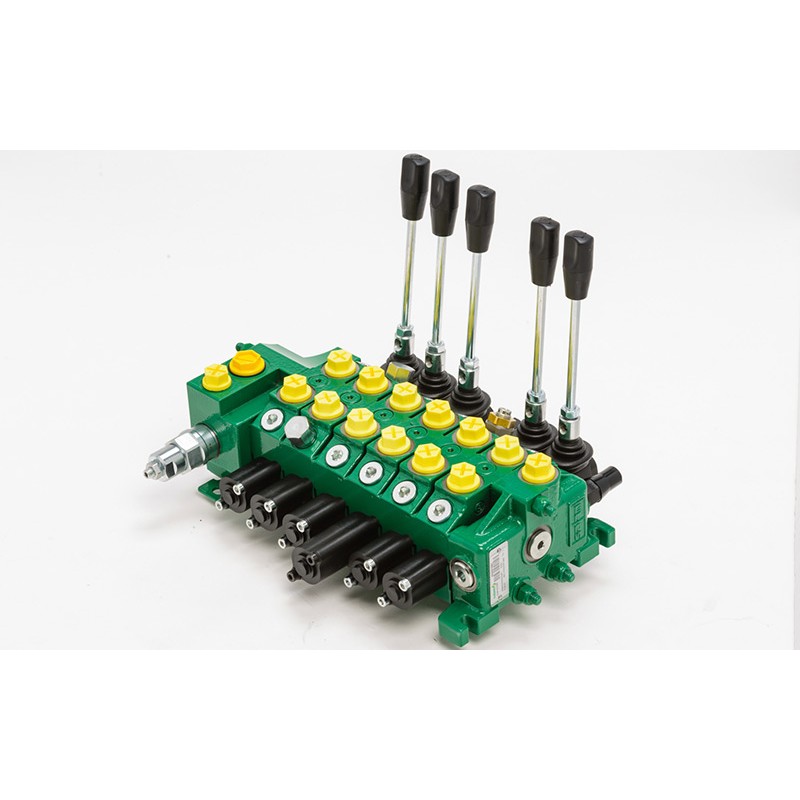

| VD6A | Operating pressure350 - 5070 | Nr of section1 - 8 | Max flow per section60 - 16 | circuitP / S / T | Nominal Flow45 - 12 | max operating pressure P350 - 5070 | max operating pressure AB350 - 5100 | max operating pressure T25 - 360 | Download |
| Type | Operating pressure | Nr of section | Max flow per section | circuit | Nominal Flow | max operating pressure P | max operating pressure AB | max operating pressure T | Download |
|---|---|---|---|---|---|---|---|---|---|

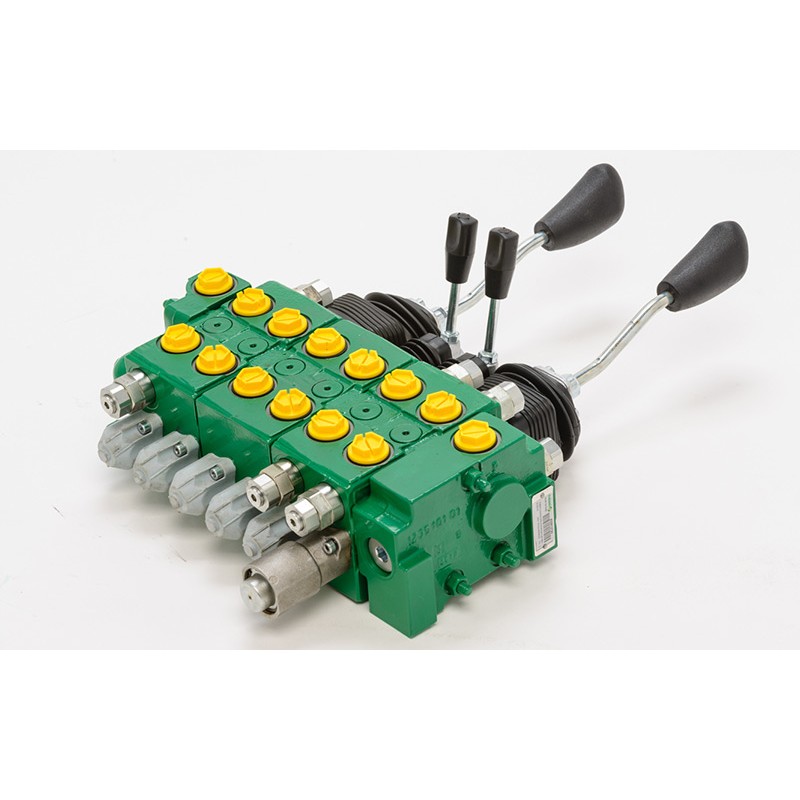

| VD8A | Operating pressure350 - 5070 | Nr of section1 - 8 | Max flow per section90 - 24 | circuitP / S / T | Nominal Flow75 - 20 | max operating pressure P350 - 5070 | max operating pressure AB350 - 5100 | max operating pressure T25 - 360 | Download |
| Type | Operating pressure | Nr of section | Max flow per section | circuit | max operating pressure P | max operating pressure AB | max operating pressure T | Download |
|---|---|---|---|---|---|---|---|---|

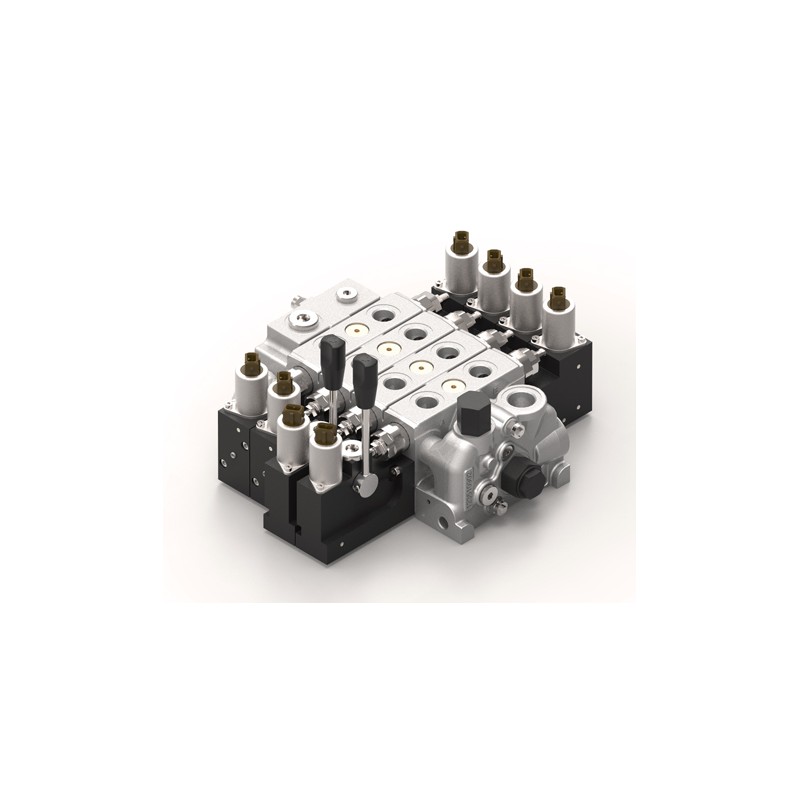

| VD8Z | Operating pressure350 - 5070 | Nr of section1 - 8 | Max flow per section90 - 24 | circuitP | max operating pressure P350 - 5070 | max operating pressure AB350 - 5100 | max operating pressure T25 - 360 | Download |
| Type | Operating pressure | Nominal Flow on inlet | Nominal Flow on ports | Nr of section | Section distance | Standard Threads | circuit | max operating pressure P | max operating pressure AB | max operating pressure T | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|

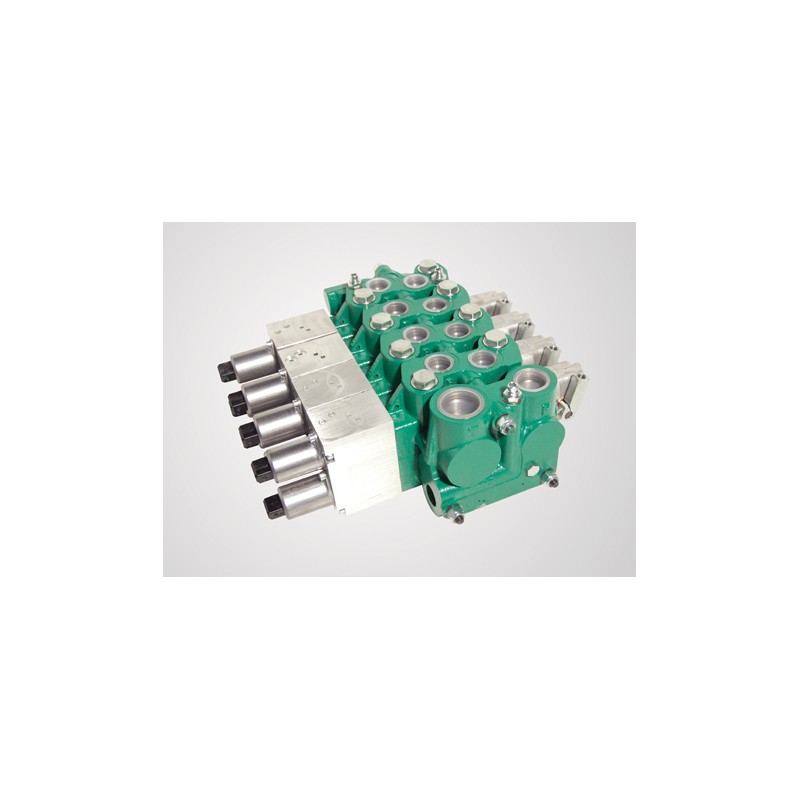

| VDP08 | Operating pressure350 - 5070 | Nominal Flow on inlet130 - 34 | Nominal Flow on ports95 - 25 | Nr of section1 - 8 | Section distance48 - 1,89 | Standard ThreadsG 1/2 | circuitFDC / CDC | max operating pressure P350 - 5070 | max operating pressure AB350 - 5100 | max operating pressure T10 - 145 | Download |
