2DRE
Product SKU: 2DRE

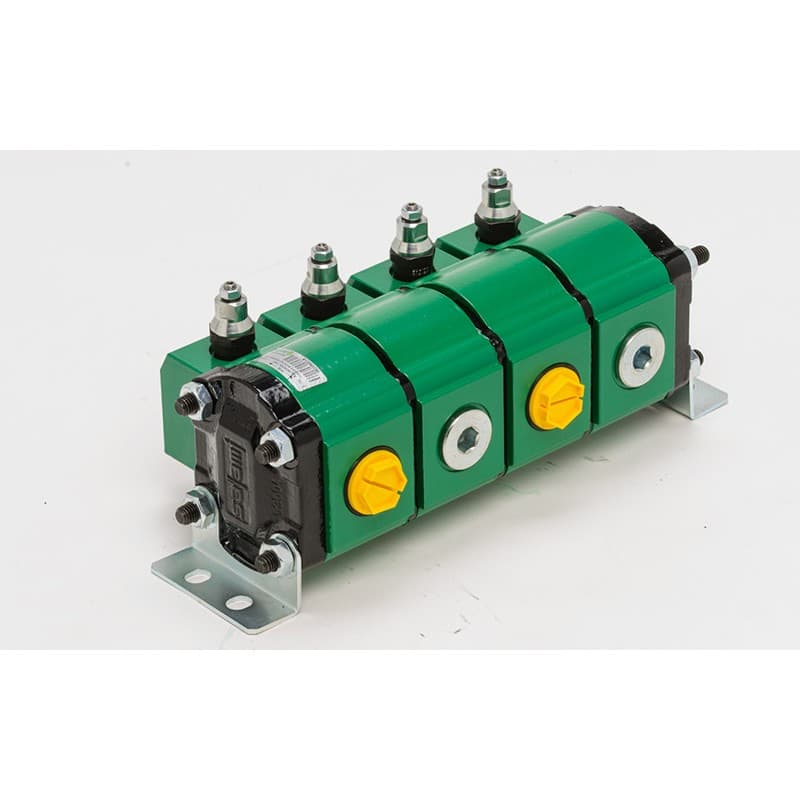

Salami 2DRE Gear flow divider
Made with aluminium alloy body and cast iron end covers.
Key features:
- High volumetric efficiency achieved by floating bushings and axial compensation.
- Integral gear with 12 teeth.Ports: European, German and SAE Standards.
- All bodies pre-arranged for assembling of AR cylinder synchronize valves.
- Common Inlet Port available also on the side-cover.
- Assembling up to 6 Stages possible.
- 2DRE-VA: cylinder synchronize function.
- 2DRE-AR: for cylinder synchronized in both directions (additional Tank connection required).
Max flow per section: 31.07 - 8.18
Displacements: 8.20 - 0.50
Max outlet dp: 50 - 725
Min flow per section: 10.36 - 2.73
max speed 17: 3600
min speed 10: 1250
Max outlet pressure P1: 250 - 3600
Max outlet pressure P3: 280 - 4000
