DSPE*G, DSPE*GL, DSPE*GH

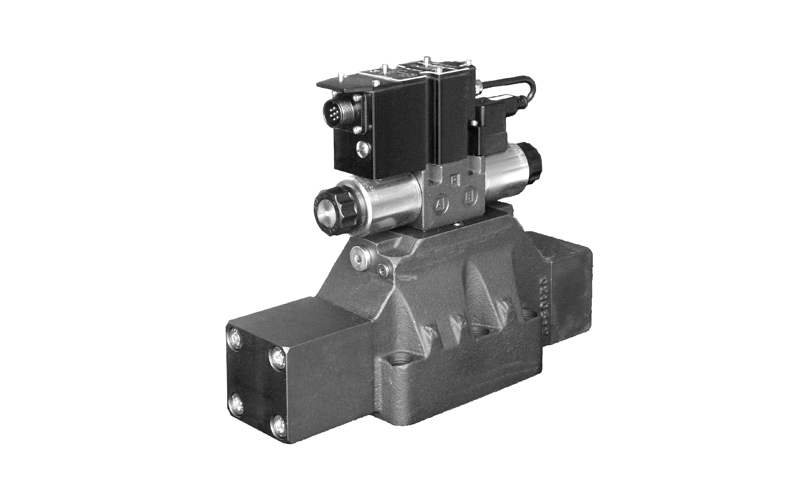

The DSPE*G, DSPE*GL and DSPE*GH are proportional directional valves, pilot operated, with on-board electronics for subplate mounting. Available in sizes from ISO 4401-05 to ISO 4401-10 with oversized ports, they are used to control the position and speed of the hydraulic actuators. Spools with open center and closed center are available for each size. Spools for regenerative circuits are available for DSPE7G*, DSPE8G* and DSPE10G*. Piloting can be internal, internal with built-in pressure reducing valve, or external. Internal or external drainage. The valves are available with different types of on-board electronics for open loop, with analogue or fieldbus interfaces. The G version is our standard electronics with analogue interface with current or voltage reference signal with connection 6 pin + PE. The GL version comes with compact box with Io-Link, Can-Open or analog interface and 5 pin M12 connection. The GH version has interface for fieldbus communication type PROFIBUS DP, EtherCAT, Ethernet/IP, Profinet, PowerLink or Can-Open, with 11 pin M12 connection.
