VDP08
Product SKU: VDP08

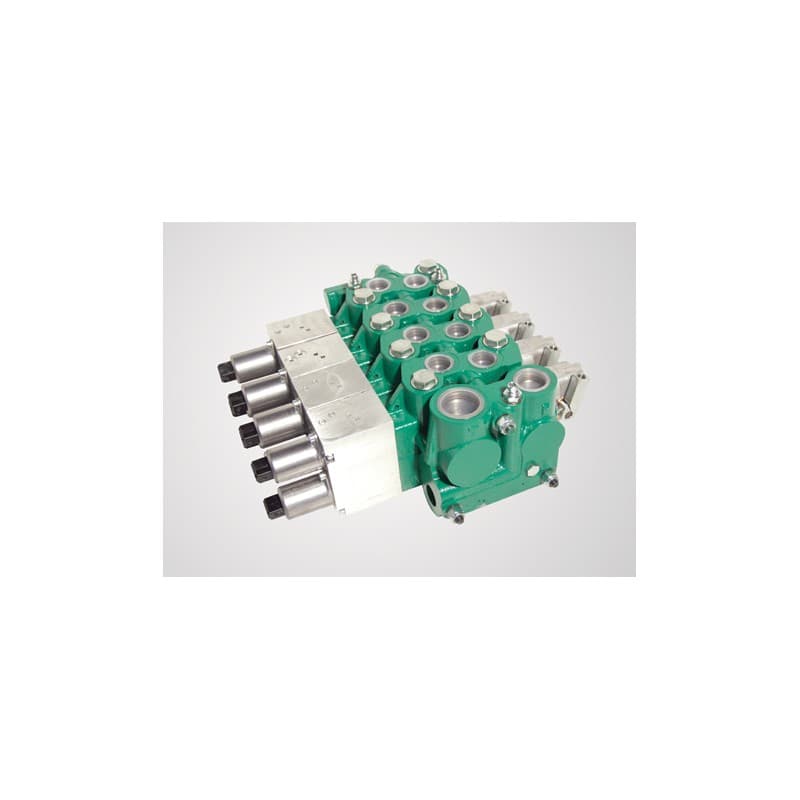

The VDP08 - Mobile Proportional Sectional Valve.
Working modules with pressure compensator built-in.
- Pre-compensated control valve.
- Different choices of working flows, choosing the proper spool.
- Possibility of pressure relief valve on the LS line coming from the ports.
- Closed loop electro-hydraulic proportional control available analog or CANBUS.
Operating pressure: 350 - 5070
Nominal Flow on inlet: 130 - 34
Nominal Flow on ports: 95 - 25
Nr of section: 1 - 8
Section distance: 48 - 1,89
Standard Threads: G 1/2
circuit: FDC / CDC
max operating pressure P: 350 - 5070
max operating pressure AB: 350 - 5100
max operating pressure T: 10 - 145
